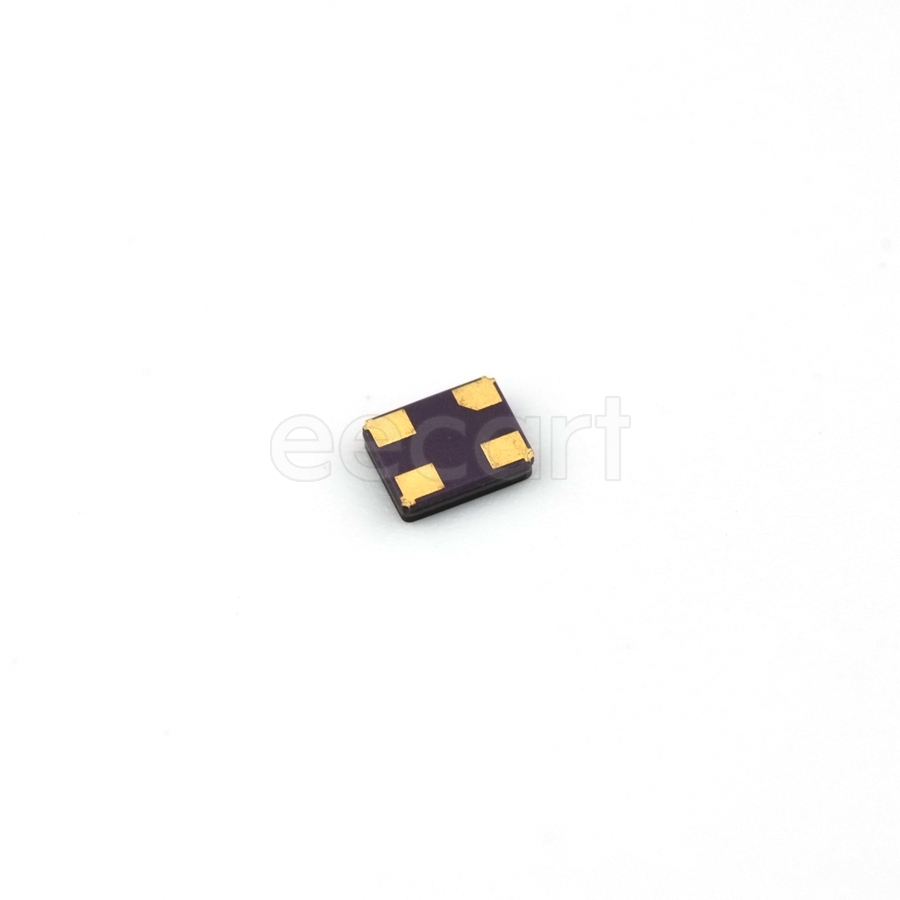

ASDMB-20.000MHZ-XY-T
Manufacturer:
Abracon Corporation
Mfr.Part #:
ASDMB-20.000MHZ-XY-T
Datasheet:
Description:
Oscillators QFN-4 SMD/SMT XO (Standard) 20 MHz
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 0.9 mm |
| Length | 2.4892 mm |
| Width | 2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 889 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Frequency | 20 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 0.001 % |
| Load Capacitance | 15 pF |
| Type | XO (Standard) |
| Operating Supply Voltage | 1.8 V to 3.3 V |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Max Supply Voltage | 3.3 V |
| Min Supply Voltage | 1.8 V |
| Supply Current | 16 mA |
| Max Supply Current | 16 mA |
| Schedule B | 8542320050 |
| Output Format | LVCMOS |
| Base Resonator | MEMS |
Stock: 1204
Distributors
pcbx
pcbxUnit Price$2.33909
Ext.Price$2.33909
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.33909 | $2.33909 |
| 10 | $2.17921 | $21.79210 |
| 25 | $2.12949 | $53.23725 |
| 50 | $2.08090 | $104.04500 |
| 100 | $2.03131 | $203.13100 |
| 300 | $1.91740 | $575.22000 |
| 500 | $1.80989 | $904.94500 |
| 1000 | $1.67395 | $1673.95000 |
